Azure AD Single Sign-On (SSO)

• Centralized Authentication - One login for all enterprise applications.
• Enhanced Security - Organization-controlled access.
• User Management - Centralized user provisioning and deprovisioning.
• Compliance - Meets enterprise security requirements.
• User Experience - Seamless authentication experience.

​

Azure AD SSO Configuration

​

Prerequisites

• Azure Portal administrator access.
• Microsoft 365 account with admin access.
• Your Odin AI instance URL.

​

Step 1: Azure Portal Setup

1. Go to Azure Portal
   Visit portal.azure.com and sign in with your administrator account.

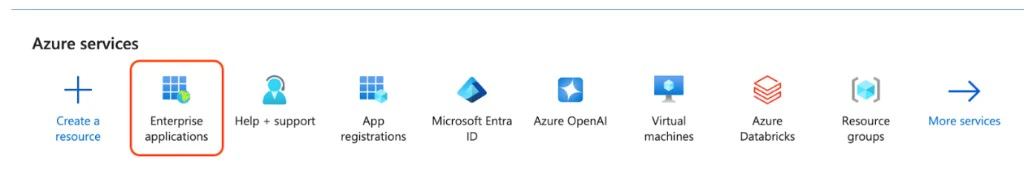

2. Navigate to Azure Active Directory
   Go to Azure Active Directory > Enterprise applications and click New application.

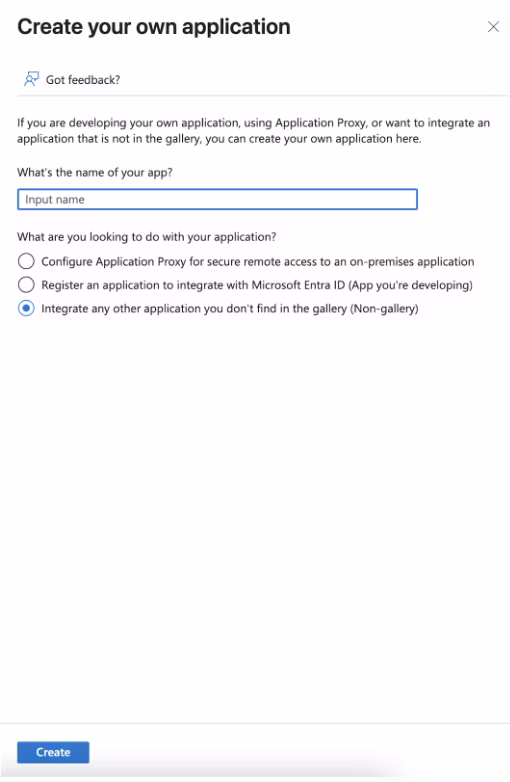

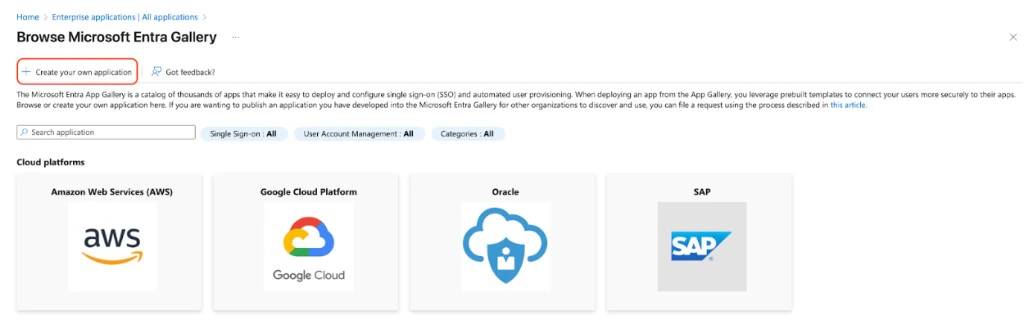

3. Create Enterprise Application
   Click Create your own application, enter an application name (e.g., “Odin AI”), select Integrate any other application you do not find in the gallery, and click Create.

​

Step 2: Configure SAML SSO

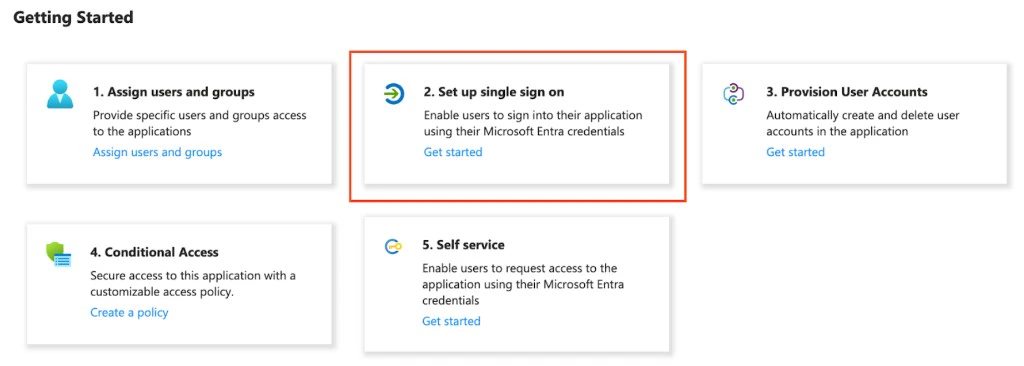

1. Set Up Single Sign-On
   In your application, go to Single sign-on and select SAML as the method.
2. Basic SAML Configuration
   Enter the following details:
   • Identifier (Entity ID): https://your-odin-domain.com
   • Reply URL (Assertion Consumer Service URL): https://your-odin-domain.com/user/azure/sso/saml/acs/admin
   • Sign-on URL: https://your-odin-domain.com
   • Relay State (Optional): Leave blank or configure as needed.

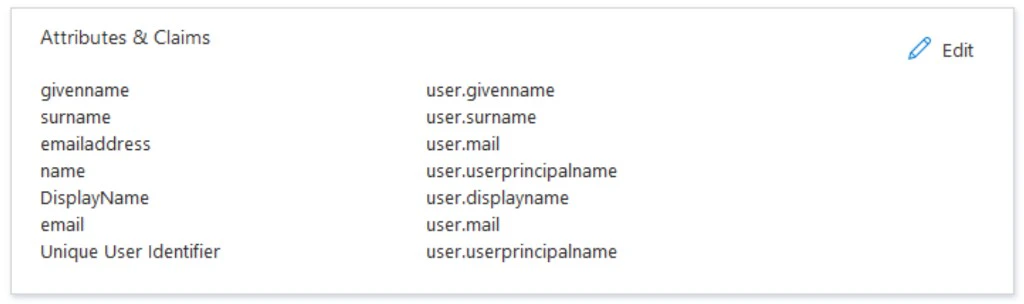

3. User Attributes & Claims
   Map the following attributes:
   • Unique User Identifier: user.mail or user.userprincipalname
   • Email: user.mail
   • First Name: user.givenname
   • Last Name: user.surname
   • Display Name: user.displayname
4. SAML Signing Certificate
   Note the certificate details and download the certificate if needed (Base64 format).

​

Step 3: Get Azure Configuration

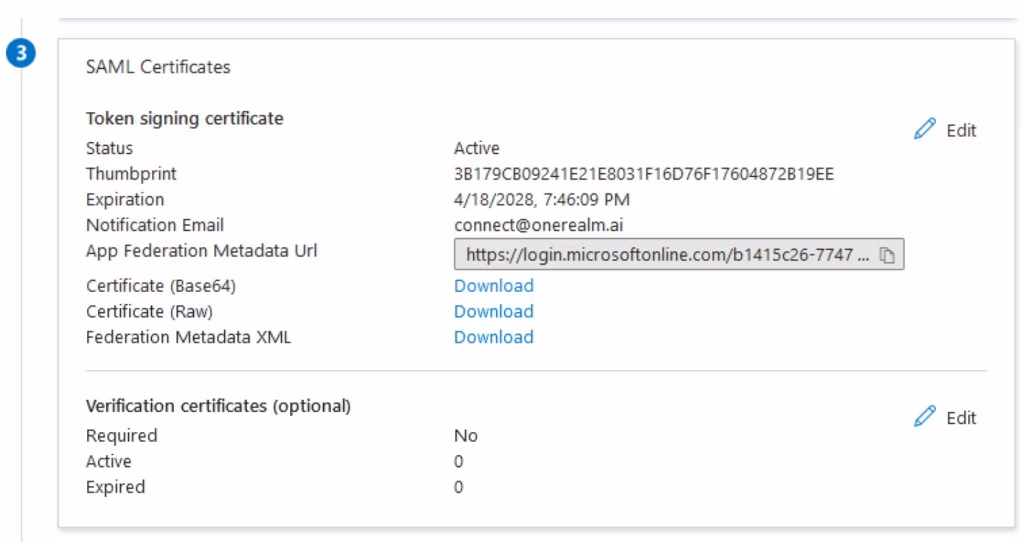

1. Download Federation Metadata
   In the SAML configuration, find SAML Signing Certificate and click Download for Federation Metadata XML. Save the metadata file.
2. Alternative: Copy Metadata URL
   Note the App Federation Metadata Url in the specified format.

​

Step 4: Assign Users

1. In Azure Portal
   Go to your Enterprise Application, navigate to Users and groups, click Add user/group, select users or groups to assign, and click Assign.
2. User Access
   Assigned users can sign in via SSO once configuration is complete and will be redirected to Azure AD for authentication.

​

Step 5: Submit Configuration to Odin AI

1. Send Configuration Details
   Email Support with the following:
   • Provider: Azure AD (or Azure)
   • Enterprise ID: Your organization’s domain (e.g., company.com)
   • Metadata URL: The Azure metadata URL from Step 3
   • Alternative: Attach the Federation Metadata XML file if you downloaded it.
   • SSO Sign-In Only (Optional): Specify if you want to require SSO for all users with this domain.
2. Odin AI Configuration
   Odin AI’s support team will configure SSO on your instance and test the connection. You will be notified once configuration is complete.
3. Testing
   Odin AI’s team will test the SSO connection, and you may be asked to verify that it works. Once confirmed, SSO will be enabled for your organization.

​

Troubleshooting Azure AD SSO

• Verify Reply URL matches exactly.
• Check Identifier (Entity ID) is correct.
• Ensure user attributes are mapped correctly.
• Verify the certificate is valid and not expired.

• Verify the user is assigned to the application in Azure AD.
• Check email attribute mapping.
• Ensure the user exists in Odin AI.
• Verify the enterprise ID matches the email domain.

​
